Local Sellers for MiSTer Expansion Boards

[ch570512]

And again new SD-RAM for sale...

[kafiend]

I am selling io boards rev 5.5 (£30), vertical ram (£15) and a 3d printed case (£16.45). These are available either separately or as a pack for £56.45. Postage to the uk is £3.50 for everything except the ram which is free postage. These are available on ebay (seller account : dirkthedaring71) (https://www.ebay.co.uk/itm/223476603514 ... 1555.l2649).

I can also ship to europe for £15.

thanks

I bought this and am very happy. Posted so fast I think that living in a Post Office is a possibility.

Items are great and very well made. I will contact again if I need other stuff.

[TWINKYTWONKA]

I am selling io boards rev 5.5 (£30), vertical ram (£15) and a 3d printed case (£16.45). These are available either separately or as a pack for £56.45. Postage to the uk is £3.50 for everything except the ram which is free postage. These are available on ebay (seller account : dirkthedaring71) (https://www.ebay.co.uk/itm/223476603514 ... 1555.l2649).

I can also ship to europe for £15.

thanks

I bought this and am very happy. Posted so fast I think that living in a Post Office is a possibility.

Items are great and very well made. I will contact again if I need other stuff.

I do not live in a post office .

Seriously though, thanks for your kind words.

[bropesda]

Bought a USB hub v1.2 from sawf01. Very well made and works perfectly also quick delivery. I have tested with an RF keyboard, BT dongle and two 8BitDo recievers. Would highly recommend.

[Tibob]

Hi,

I've got some extensions Board available. Shipping in European Union (from France). Payment by paypal.

All the boards are checked and work as promised.

Experienced seller with 13x Extra slim SDRAM Board v1.1, 5x IO board and 3x RTC Board v1.3

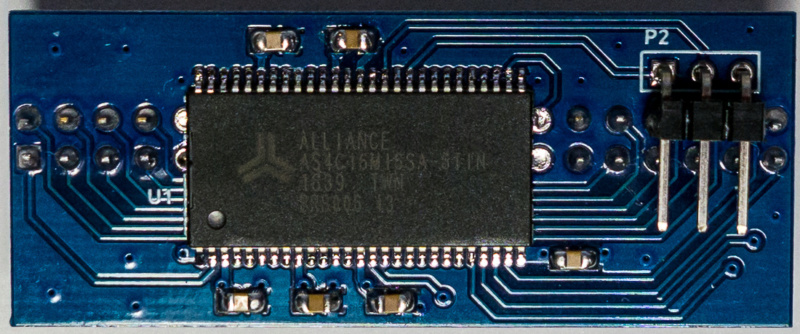

- MiSTer FPGA DE10-NANO Extra slim SDRAM Board v1.1 Alliance chip : 14€90 + 2€90 to France (or 4€90 to European Union) 2 left in stock shipping in 24h

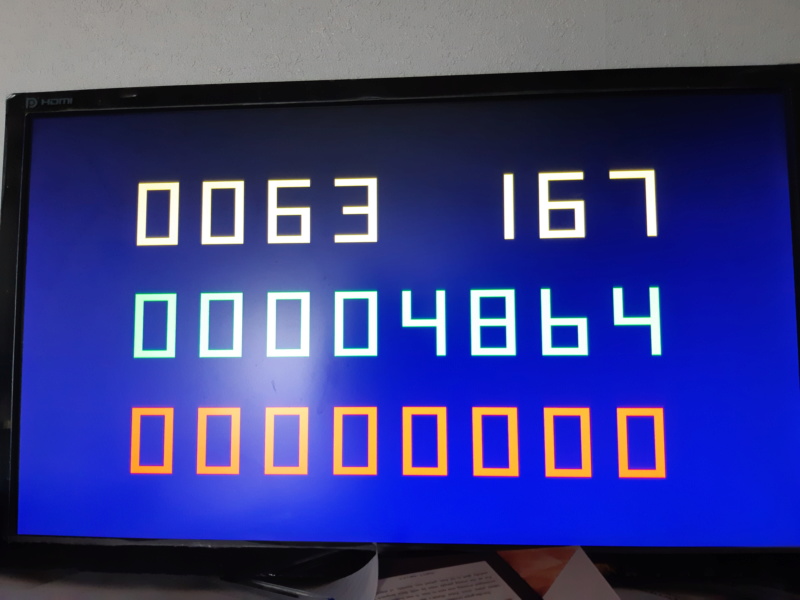

No error at 167mhz

Feel free to send me a PM if you have any question.

[Unrealcpu]

American seller just got a new batch of boards/ram


Alliance SD Ram board $32.99+3.99 shipping

Winbond SD Ram board $25.99+3.99 Shipping

USB Hub 1.2 with bridge $42.99+3.99 Shipping

IO board 5.6 XL $49.99+3.99 Shipping

IO board 5.5 XL $44.99+3.99 Shipping

Can be contacted at Unrealcpu@aol.com

Will ship next business day
Will combine shipping,
can ship internationally will discuss

Thank you !

[digitron]

.

[guzzard]

Purchased the SDRAM XS v1.1 for MiSTer FPGA DE10-NANO from ch570512 and it arrived quickly a couple of days later in good condition packed in some bubble wrap in an envelope.

My particular module seem to be stable at 160Mhz, but not 167Mhz. I'm satisfied though since 160Mhz is more than enough for all the current cores. Thanks ch570512!

[spono]

Does anyone know if Poobah is on vacation? I sent him an email 2 days ago to order some boards and haven't heard back.

Edit: never mind! He got back to me yesterday evening.

[ChrisGoodwin]

Is anyone selling boards for the DE0-nano-SoC? If so I'd like to buy one. I'm in the USA. Thanks!

[digitron]

.

[Poobah]

Hey all,
Back up and running after tornados went through our neighborhood (Beavercreek, Ohio)
Power is restored, so my soldering iron is back in business =D

Boards in Stock:
IO v5.5.
SDRAM XS 1.1
RTC v1.3

[Poobah]

USB Hub 1.2 Now Available
Includes:
- USB Hub Boards v 1.2
- Bridgeboard
- Matching brass standoffs
- Power Y cable

$30 US plus shipping

See http://www.atari-forum.com/viewtopic.ph ... 69#p359169 or http://www.legacypixels.com/mister to order


[digitron]

.

[Sorgelig]

These come with high quality Noctua NF-A4x10 5V fans, the fans alone cost $14 ea

Blowing performance is higher than sucking, btw.

[ch570512]

SDRAM XS v1.1 new stock available via eBay...
https://www.ebay.de/itm/173944554637

FREE HEATSINK!!! (limited offer!!!)

[digitron]

These come with high quality Noctua NF-A4x10 5V fans, the fans alone cost $14 ea

Blowing performance is higher than sucking, btw.

Thx, I'll turn them around.

[Nuclear3D]

I'm not sure if this is the right place for this but i'm selling my extra mister stuff.

SDRAM XS v1.1 for MiSTer FPGA DE10-NANO Winbond

https://www.ebay.com/itm/283516139974

MiSTer FPGA DE10-NANO Printed Fan Board and Heatsink

https://www.ebay.com/itm/283516161236

[bmavatar]

Hello

I am selling my MiSTer
( the nano10, sdram and io board )

https://www.ebay.fr/itm/293144458411

(shipping to France and Europe)

thanks

[bmavatar]

Hello

I am selling my MiSTer
( the nano10, sdram and io board )

https://www.ebay.fr/itm/293144458411

(shipping to France and Europe)

thanks

And I forgot to say that if we make the transaction here in the forum, the price will be 10% less than on ebay ...

[atatat]

I/O Board v6.0 - anyone have?

[THaase]

Hunting numbers?

I'll do some if I ran out of 5.5PCB's and not before.
It's again some small step further, but not a big jump as from the 3.1 to the 5.2.

Changes between 5.5 / 5.6 / 6.0:

5.5 - 5.6: Some pullups on the USB3 connector (nobody using till now) / switch to manually switch on/off the fan
5.6 - 6.0: Switch for the fan is gone agin, but now the possibility to power the and with 3V or 5V / single resistors exchanged to resistor networks.

Sorgelig might correct me (maybe I've overseen something) - but this is more or less all.
Changing to resistor networks will give some benefit for the people who solder the boards as it will reduce the time for solder a board. The the user there is no change. Picture is generated exactly the same.

@Sorgelig: in the Schematics you refer to R beeing 240R or 300R - have you done some calculations about the wave resistance for the R2R Network.
If I remember right the older one with the R1=510R has been quite near to the theoretical needed 75R?
Don't want to blame you - you say tested in the Schematics and if you write this I know that it will work - this is (at leat for me) just an academic question.
(And beeing at my first coffee this morning and too lazy to calculate by my own )

So for the End User there is no big relevant change - you might see it different, but there is some no real need to hunt for a 6.0.
If you can wait - then wait - if you are want to buy now, buy a 5.5 or 5.6 one - I've desribed the differences above - and (at least in my opinion) they are minor.

[atatat]

I/O Board v6.0
- R-2R DAC for VGA
- use resistor networks for fewer amount of components.
- Automatic VGA SOG control from software.

USB Hub v2.1
- VBUS control (optional)
- Additional 2 USB power-only ports. Can be used for either power supply for MiSTer or for non-USB devices using USB as a power source.

More then enough to buy v6.0 if you have no any other

[Sorgelig]

6.0: Switch for the fan is gone agin

it's not gone. It's added. You can use either 0R resistors or use the jumper/switch.

@Sorgelig: in the Schematics you refer to R beeing 240R or 300R - have you done some calculations about the wave resistance for the R2R Network.
If I remember right the older one with the R1=510R has been quite near to the theoretical needed 75R?

I didn't. Actually i had no much choice for R-2R values. Basically only these 2 values are found on Mouser. I've tested it on my monitor and picture with 300R is close to what was in v5.6. I've also tried 499/1K but picture is darker.

[THaase]

6.0: Switch for the fan is gone agin

it's not gone. It's added. You can use either 0R resistors or use the jumper/switch.

Has to be too less coffee before answering

@Sorgelig: in the Schematics you refer to R beeing 240R or 300R - have you done some calculations about the wave resistance for the R2R Network.
If I remember right the older one with the R1=510R has been quite near to the theoretical needed 75R?

I didn't. Actually i had no much choice for R-2R values. Basically only these 2 values are found on Mouser. I've tested it on my monitor and picture with 300R is close to what was in v5.6. I've also tried 499/1K but picture is darker.[/quote]

OK, thanks for the Info - as I said - just academic ....
I've had also searched for a full intergrated one ... basically found one from AD (would hve to check again) - but if I remember right this needed some kind of clock (don't ask me for the purpose at the moment - can't remember )
