Reworked by Mr Czuba?
Ok then its possible that perhaps we did have the very same mod, but he has swapped a wire or two over perhaps?
Any chance you can do me one more favour then?

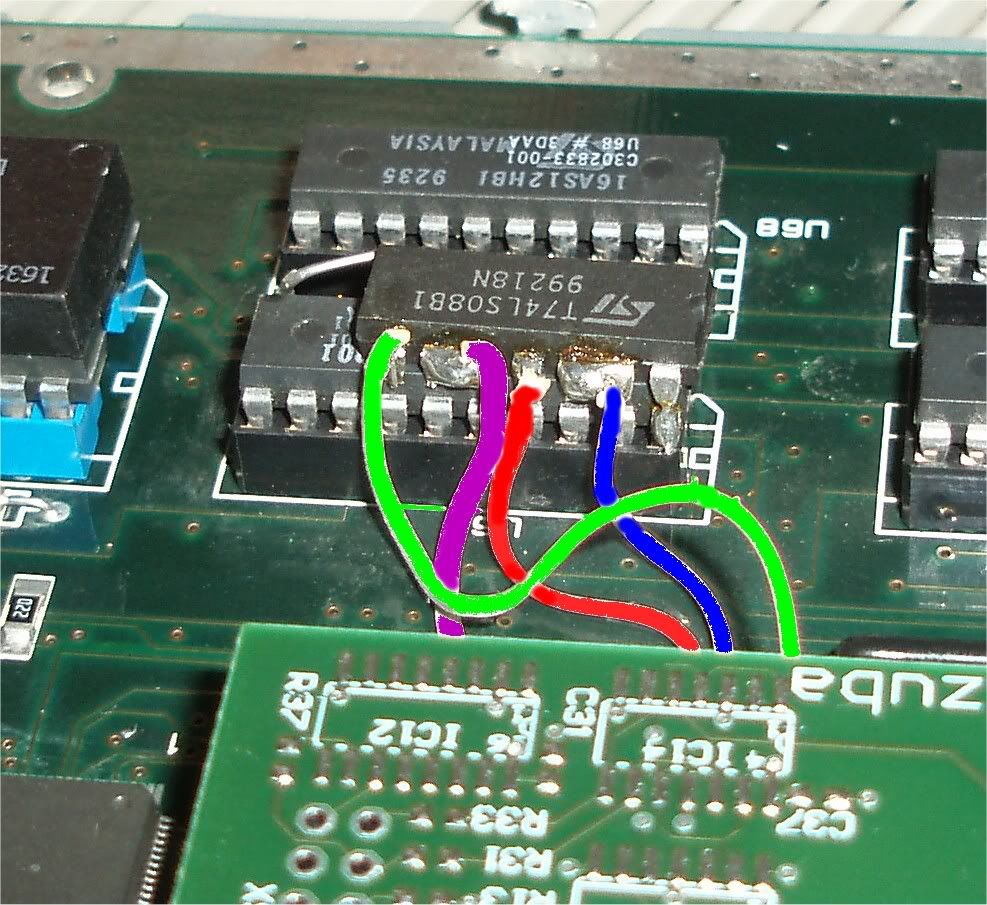

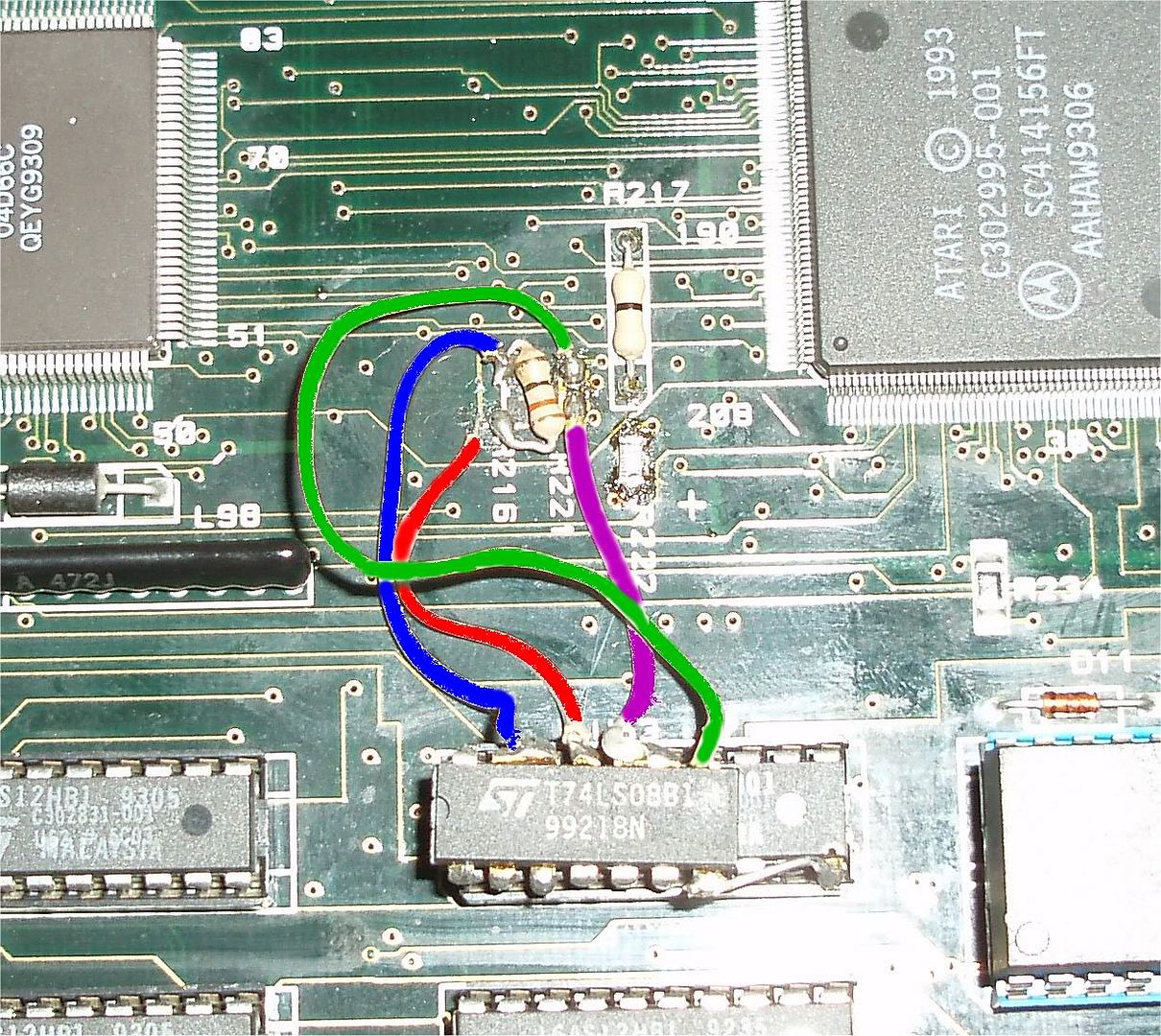

The wires...Im still not 100% clear on where they go?

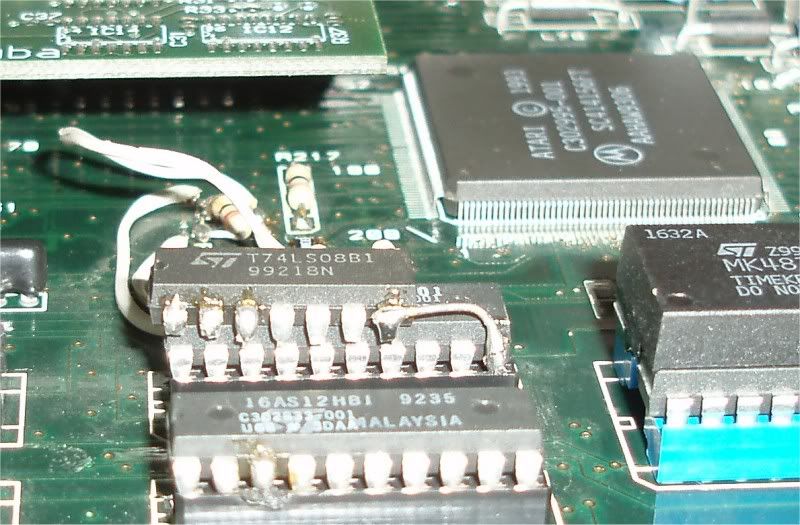

At the back of the Chip, the right hand pin goes to the back/right pin on the chip its mounted to? - is that the only one?
I have done a half-arsed drawing ( My artwork is dangerously poor ) and the drawing looks nice and its clear what needs to be done, but it also looks wrong too!
In fact on my Photos, you can clearly see that the chips are 9pin each side but yours is 7 pins a side, and when I just went to have a look again, mine is also 7 pins a side, so my photos are not showing enough.
Anyway, what are the chances you can get a coupel more pics, with perhaps showing where the wires are going from and to maybe?
Not a demand by all means, just if you have the case open and have a camera to hand kind of thing...
